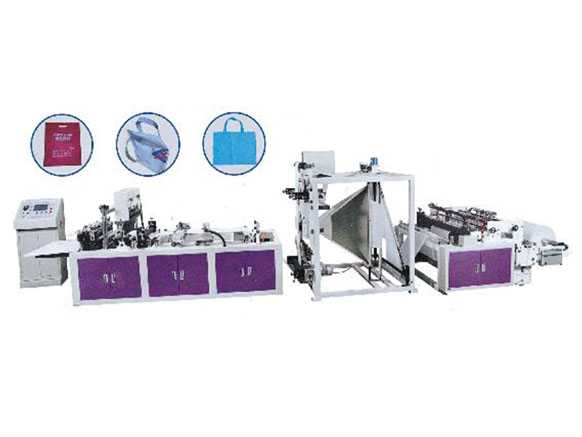

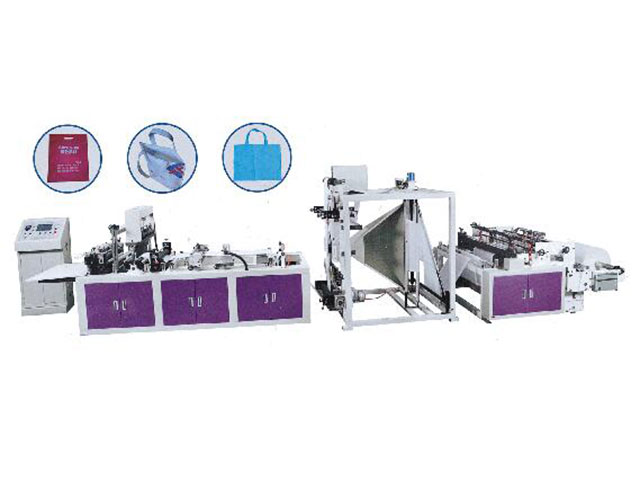

non woven d cut bag making machine

Model

ZQ-600

ZQ-700

ZQ-800

Max Bag Length

600mm

600mm

600mm

Max Bag Width

560mm

660m

760mm

Max Vest Bag Width

380mm

380mm

380mm

Machine Speed

30-100 bags/min

30-100 bags/min

30-100 bags/min

Max Fabric Width

1300mm

1500mm

1700mm

Total Power

15kw

17kw

19kw

Machine Weight

1500kg

1600kg

1700kg

Air Pressure

2mpa

2mpa

2mpa

Material Thickness

30-100 gram

30-100gram

30-100gram

Max fabric Diameter

800mm

800mm

800mm

Voltage

220V/380V

220V/380V

220V/380V

Machine Dimension

7000*1800*2300mm

7000*1900*2300mm

7000*2000*2300mm
