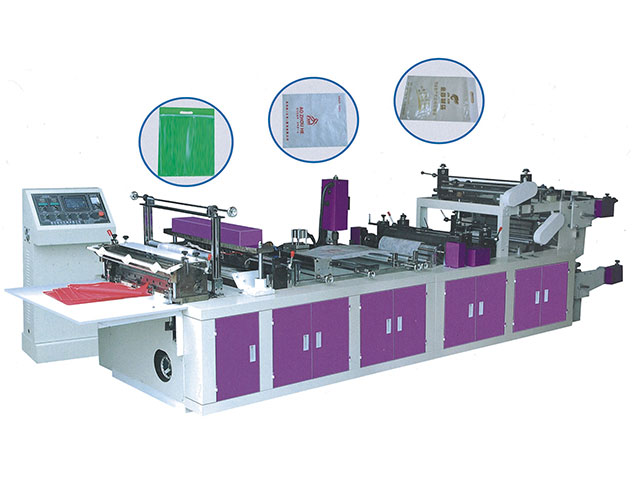

non woven box bag making machine

Model

ZQLT-600

ZQLT-700

ZQLT-800

Max bag length

600mm

600mm

600mm

Max bag width

560mm

660m

760mm

Machine Speed

30-100 bags/min

30-100 bags/min

30-100 bags/min

Max Fabric Width

1300mm

1500mm

1700mm

Total Power

19KW

21KW

22KW

Machine weight

2000kg

2200kg

2400kg

Air Pressure

2mpa

2mpa

2mpa

Material Thickness

30-100 gram

30-100gram

30-100gram

Max fabric Diameter

1000mm

1000mm

1000mm

voltage

220V/380V

220V/380V

220V/380V

Machine Dimension

7500*1800*2300mm

7500*1900*2300mm

7500*2000*2300mm
