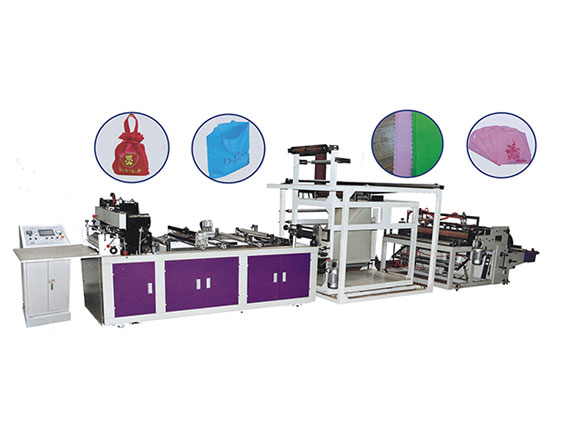

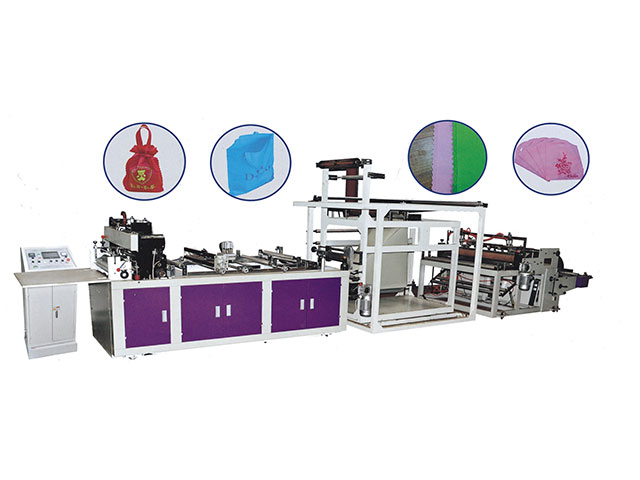

non woven box bag making machine

Model

ZQLL-600

ZQLL-700

ZQLL-800

Max bag length

600mm

700mm

800mm

Max bag width

560mm

660mm

760mm

Machine Speed

20-90 bags/min

20-90 bags/min

20-90 bags/min

Max Fabric Width

800mm

800mm

900mm

Total Power

14kw

15kw

16kw

Machine weight

1000kg

1100kg

1200kg

Air Pressure

2mpa

2mpa

2mpa

Material Thickness

50-100 gram

50-100 gram

50-100 gram

Max fabric Diameter

800mm

800mm

800mm

voltage

220V

220V

220V

Machine Dimension

6000*1650-1700mm

6000*1750*1700mm

6000*1900*1700
