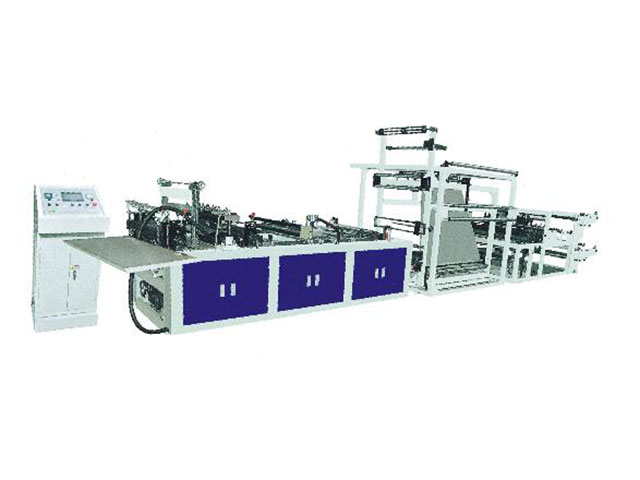

fully automatic multifunctional non woven bag making machine

Model

ZQ-D600

ZQ-D700

ZQ-D800

Max bag length

600mm

700mm

800mm

Max bag width

560mm

660mm

760mm

Machine speed

30-80bags/min

30-80bags/min

30-80bags/min

Max fabric width

1300mm

1500mm

1700mm

Total power

22kw

24kw

25kw

Machine weight

1500kg

1600kg

1700kg

Air pressure

2Mpa

2Mpa

2Mpa

Material Thickness

30-100 gram

30-100 gram

30-100 gram

Max Fabric Diameter

800mm

800mm

800mm

Voltage

220V/380V

220V/380V

220V/380V

Machine dimension

9000*1900*2300mm

9000*1900*2300mm

9000*1900*2300mm
